Primed Parts

8/5/17: Primed parts for the elevator.

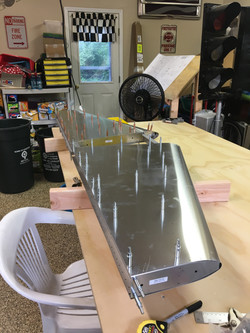

Elevator

8/7/17: The elevator is completed.

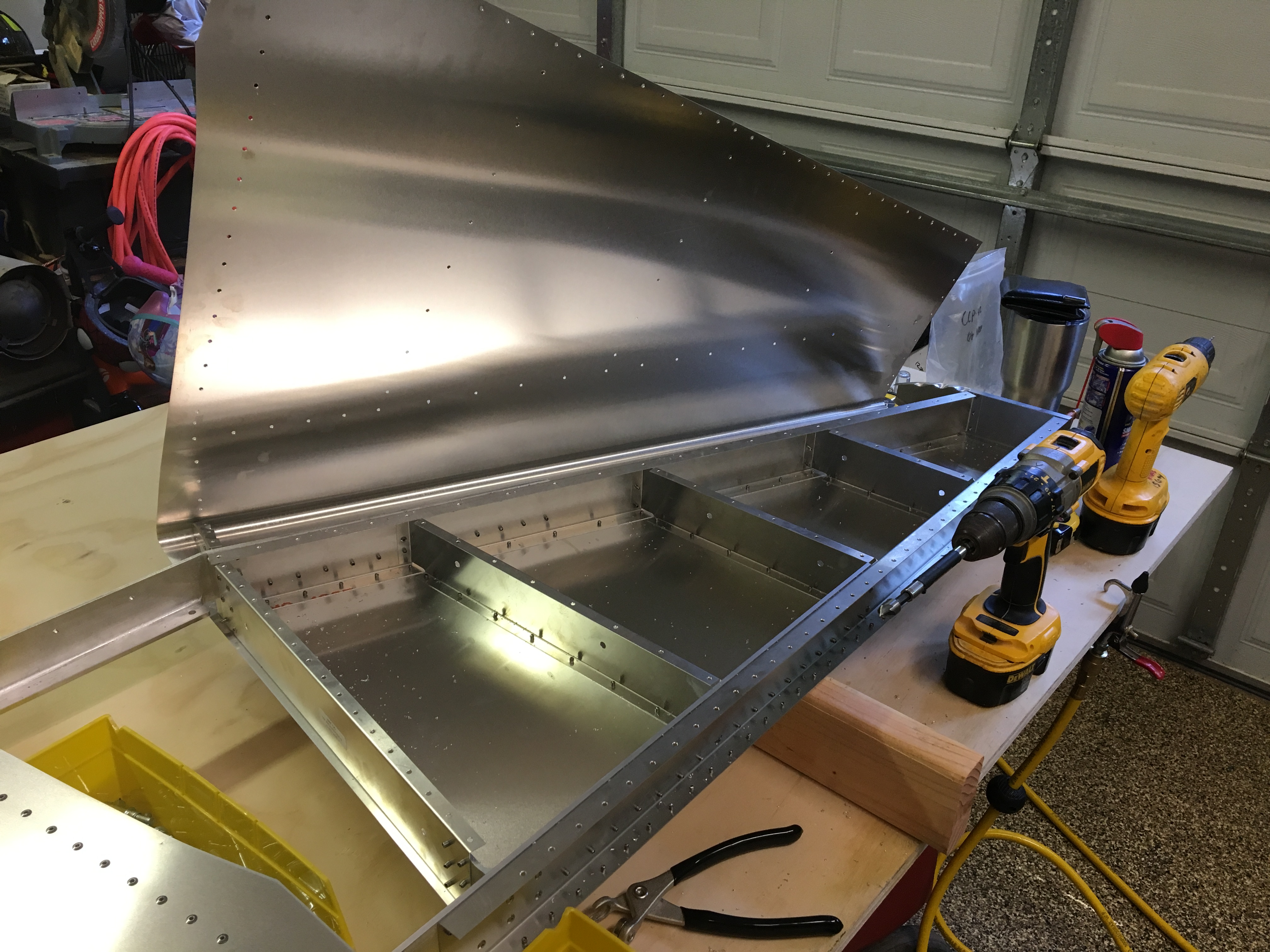

Horizontal Stabilizer

8/10/17: Skins are starting to be drilled and cleco'd together.

More Deburring

8/12/17: Continuing on the updrilling and deburring process.

Structure Deburred

8/12/17: Holes are deburred and skins are ready to be riveted.

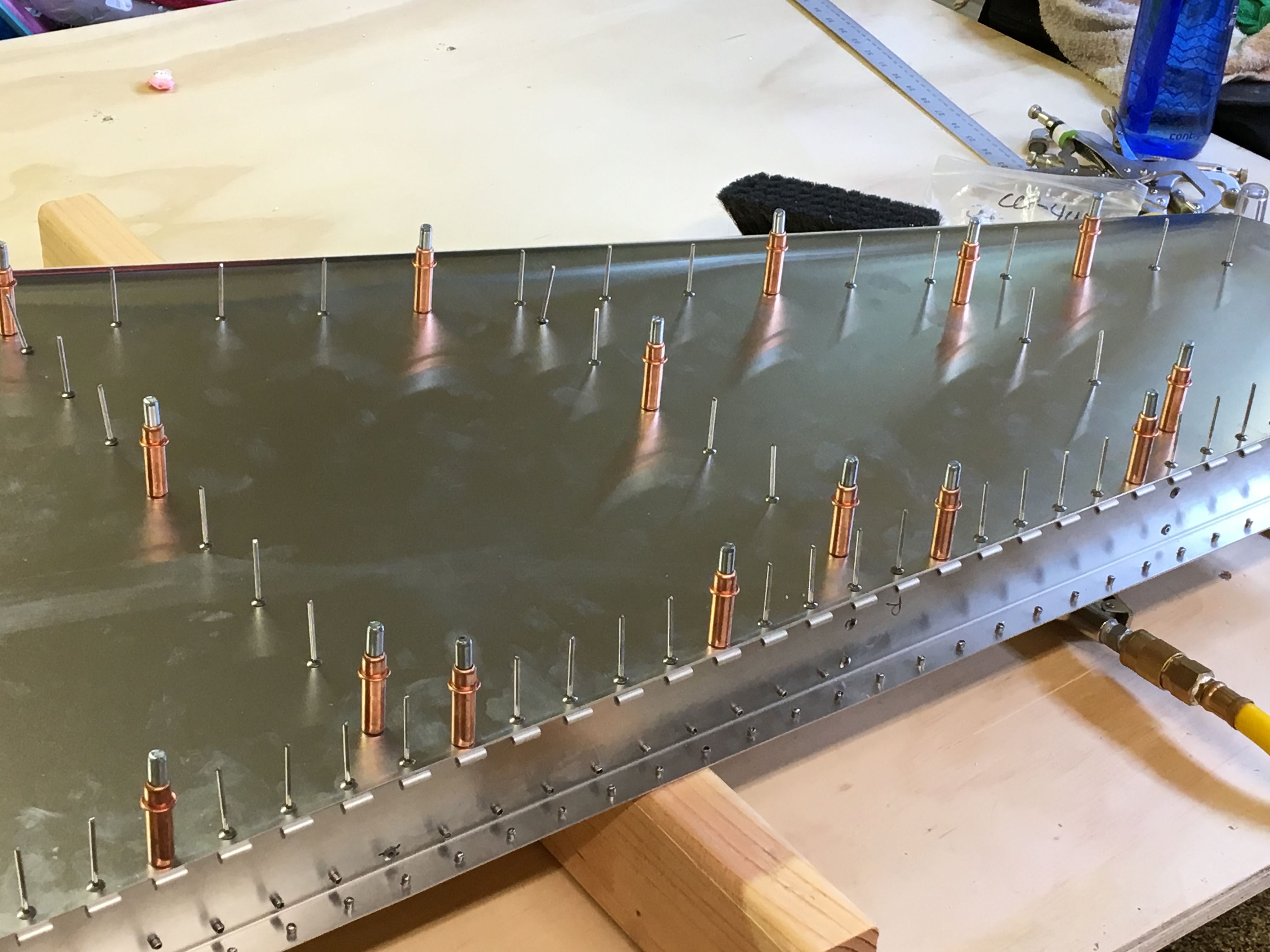

Rivets Rivets Rivets

8/17/17: Skins are finally cleco'd and ready for rivets. Rivets are set.

Elevator Mounted

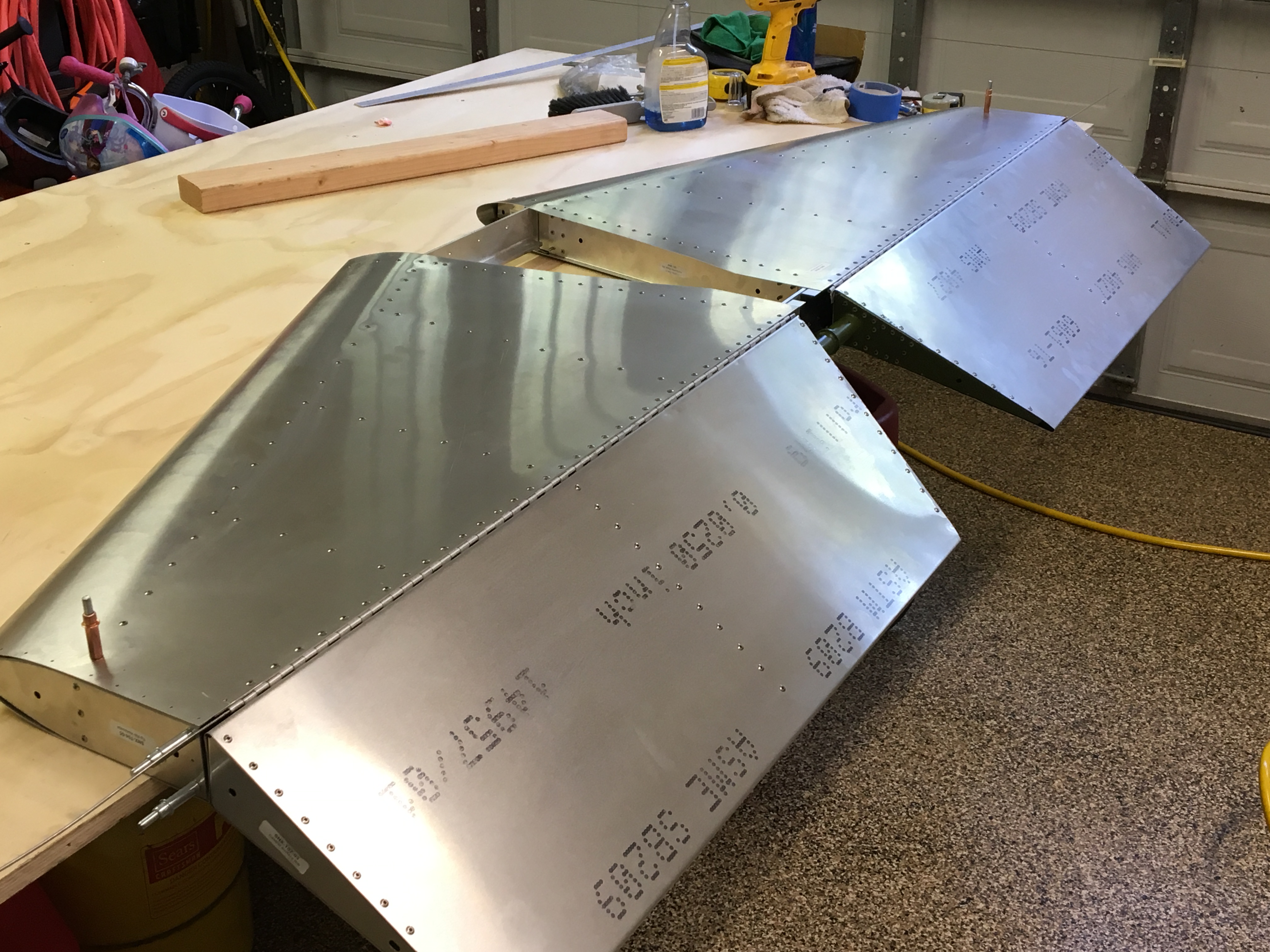

8/20/17: Skins are done and elevator is mounted. Looking more and more like a plane part!

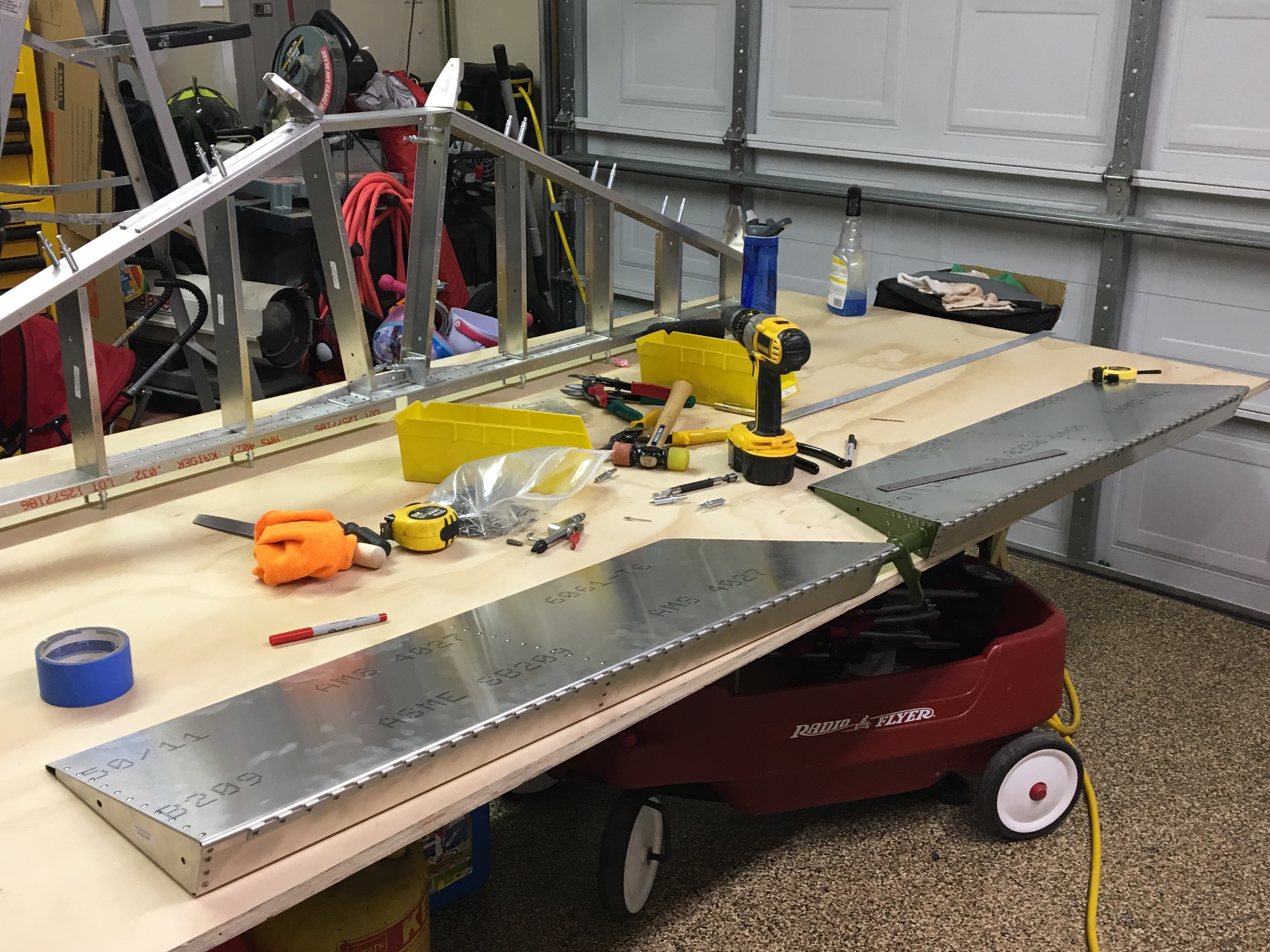

Horizontal Stabilizer

7/31/17: Started on the horizontal stabilizer cleco'd the main and sub spars. Still waiting on back-ordered parts to arrive so I can move forward.

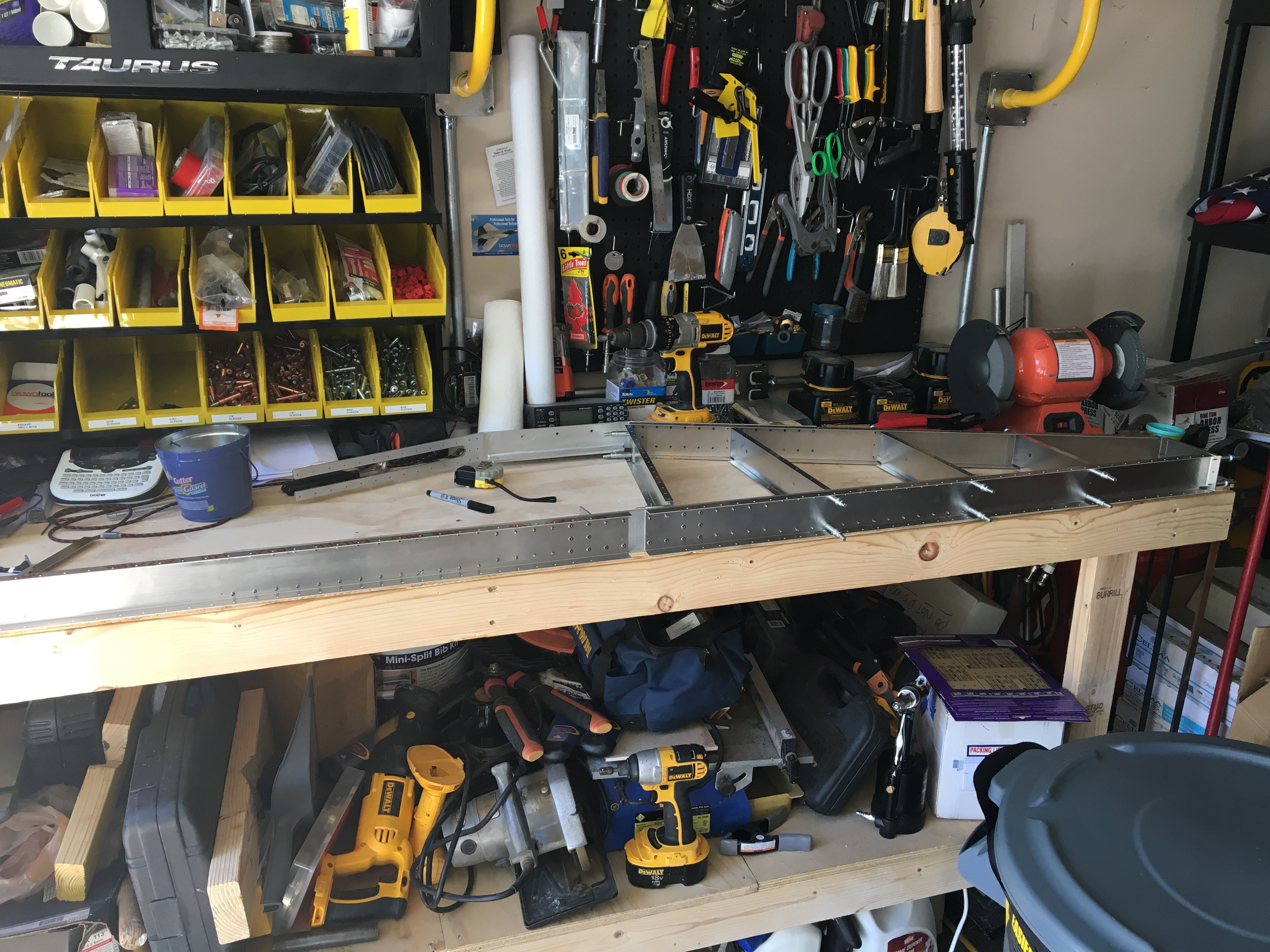

Horizontal Stabilizer

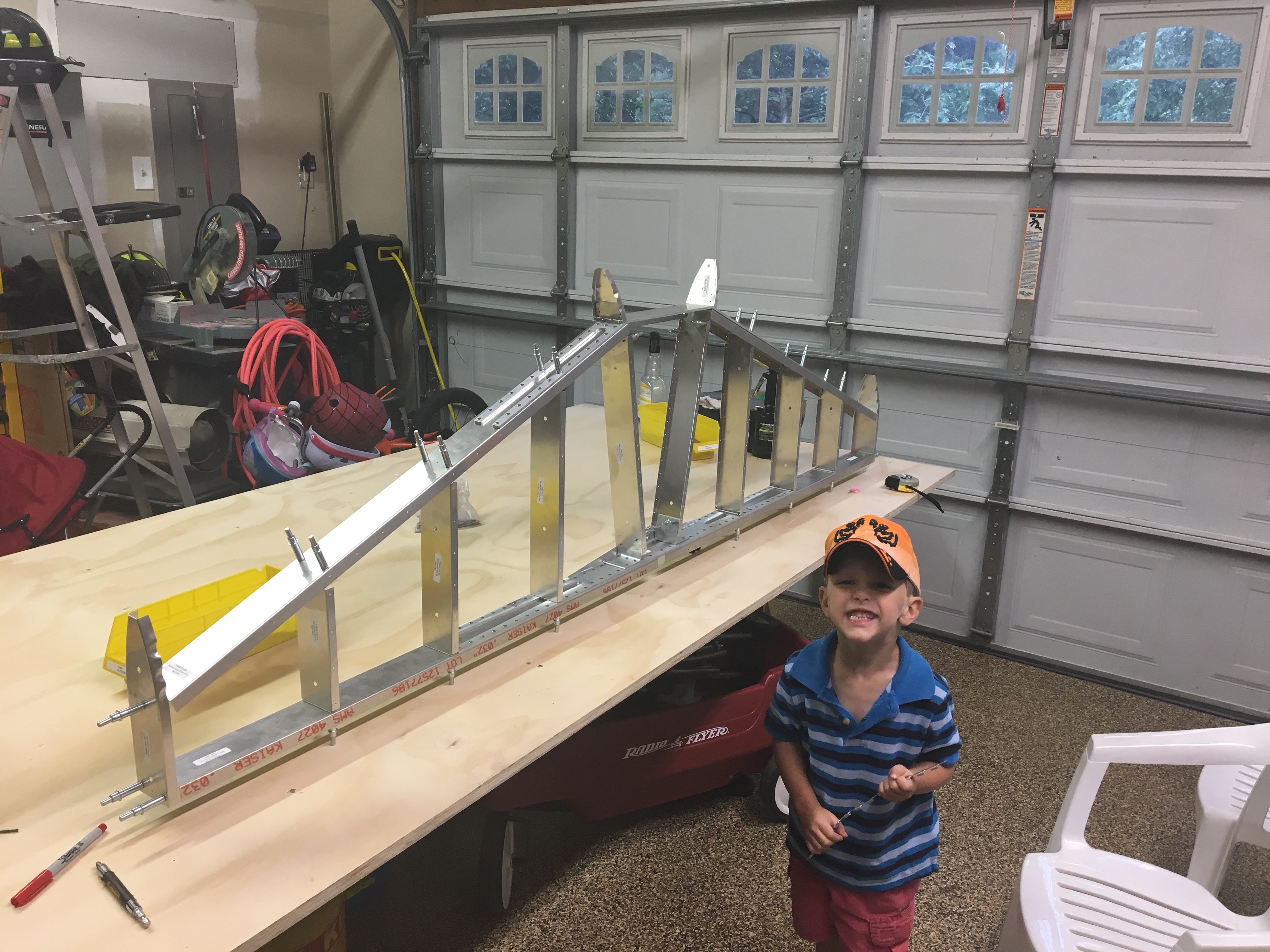

8/2/17: My bud and I cleco'd and riveted the frame together.

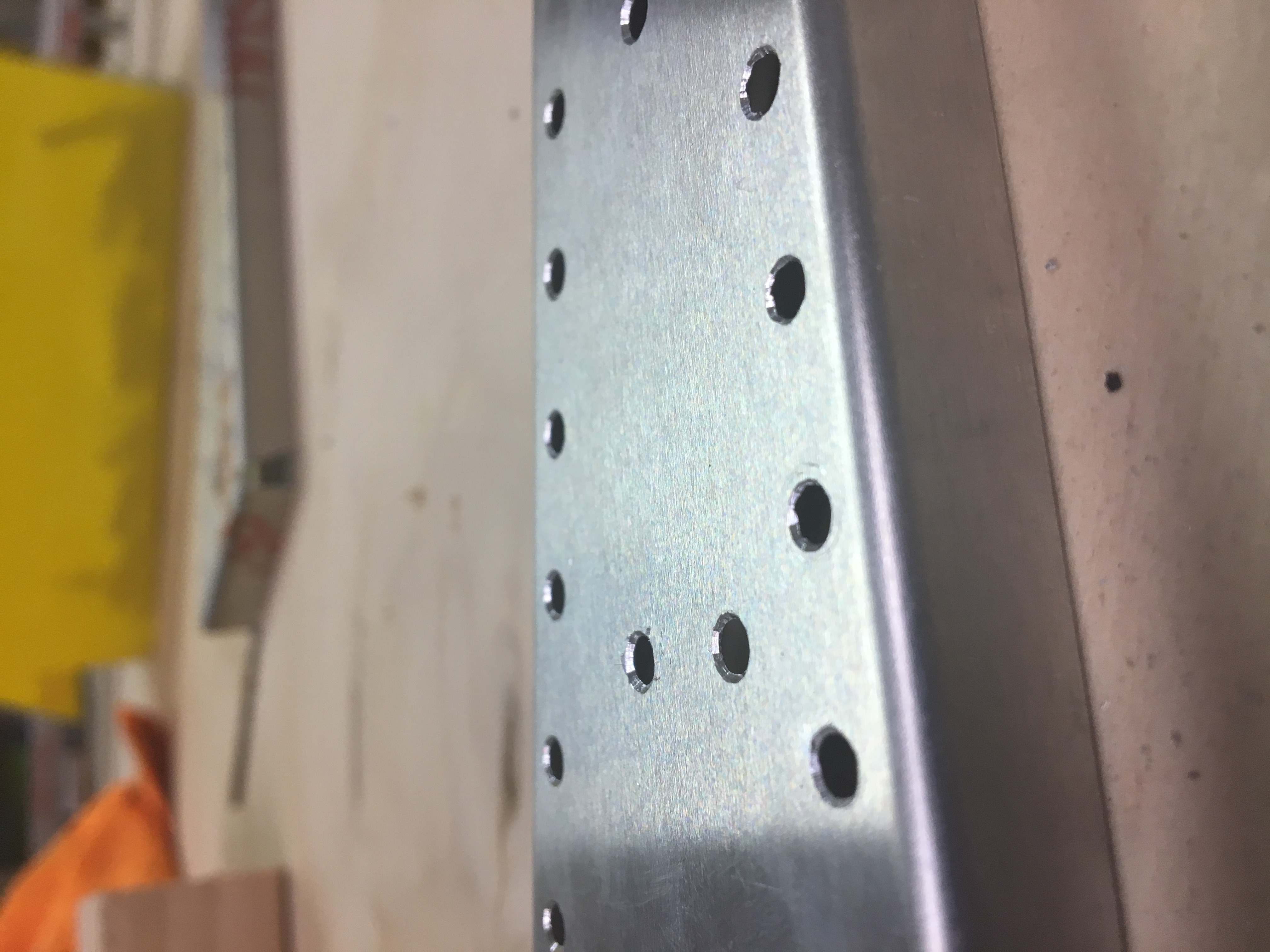

Raw Drilled

8/3/17: Every hole on the plane has to be drilled, cleco'd, updrilled to 1/8", un-cleco'd, deburred, re-cleco'd and then finally riveted.

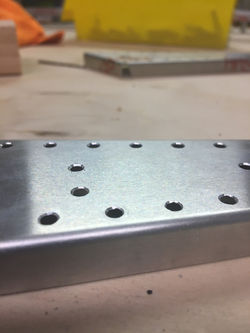

Deburred Hole

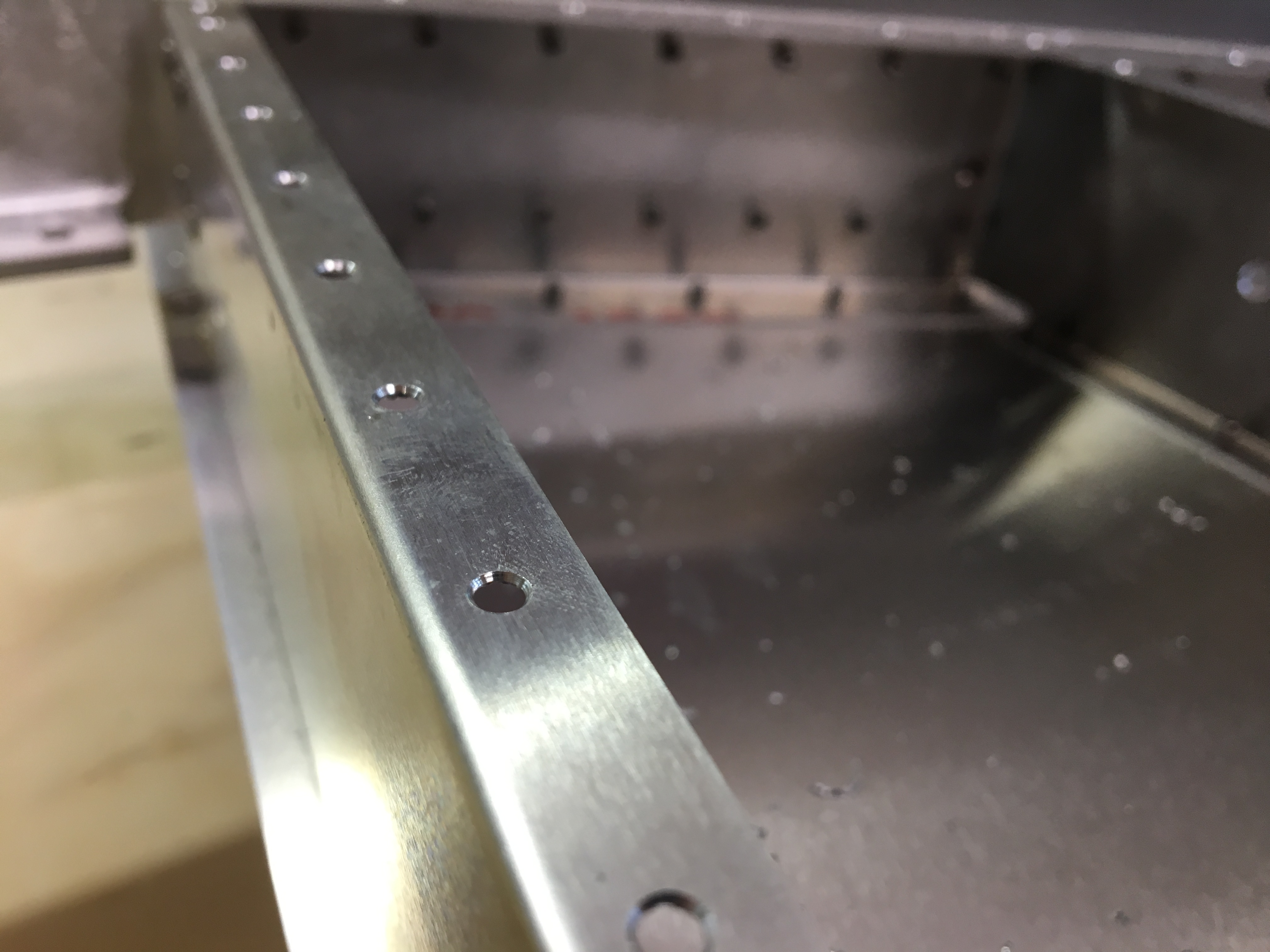

8/3/17: How the hole is supposed to look prior to being riveted. Quality craftsmanship is key to success and safety.

THE HORIZONTAL STABILIZER

Updated: 1/1/2021
