Tim Wrede's Sonex-B Build

![IMG_2584[1].PNG](https://static.wixstatic.com/media/2b29a3_ee635128053949dea0bb2833365add1b~mv2.png/v1/fill/w_165,h_29,al_c,q_85,usm_0.66_1.00_0.01,enc_auto/IMG_2584%5B1%5D_PNG.png)
Powered By:
Proudly Using Equipment By:

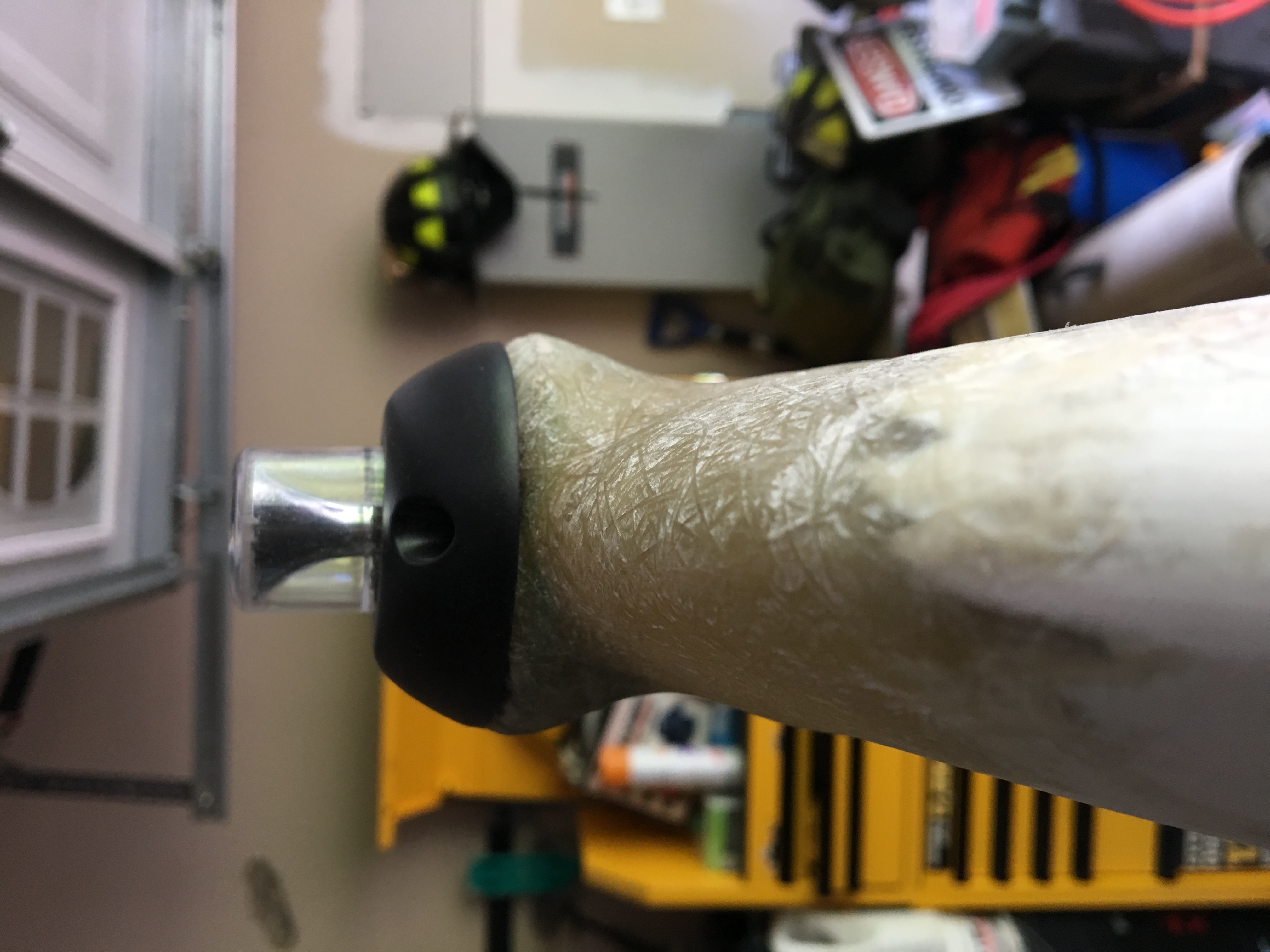

![]() 7/20/17: I am attempting to have a Vertical Stabilizer tip beacon light. I nervously drilled the fiberglass and shaved some heat sink off the light to see if this will work. I think it will, waiting for the fiberglass supplies to arrive so I can get this started. | ![]() 7/20/17: As you can see the side profile isn't much wider than the fiberglass tip. Some creative fiberglass work should make this look decent. We shall see. |
---|
![]() 7/20/17: This is how the beacon will look when powered up. It will also be synced to another beacon on the belly. I think it will look better once all the fiberglass work is complete. | ![]() 7/23/17: This was my first attempt at fiberglass, I used modeling clay as the form and several layers of fiberglass matting to make up the form. It just needs to sanded, filled, primed and painted. |
---|---|
![]() 1/1/2021: Started laying some bondo on for final primer/vinyl application and installation on Vertical Stabilizer. |
